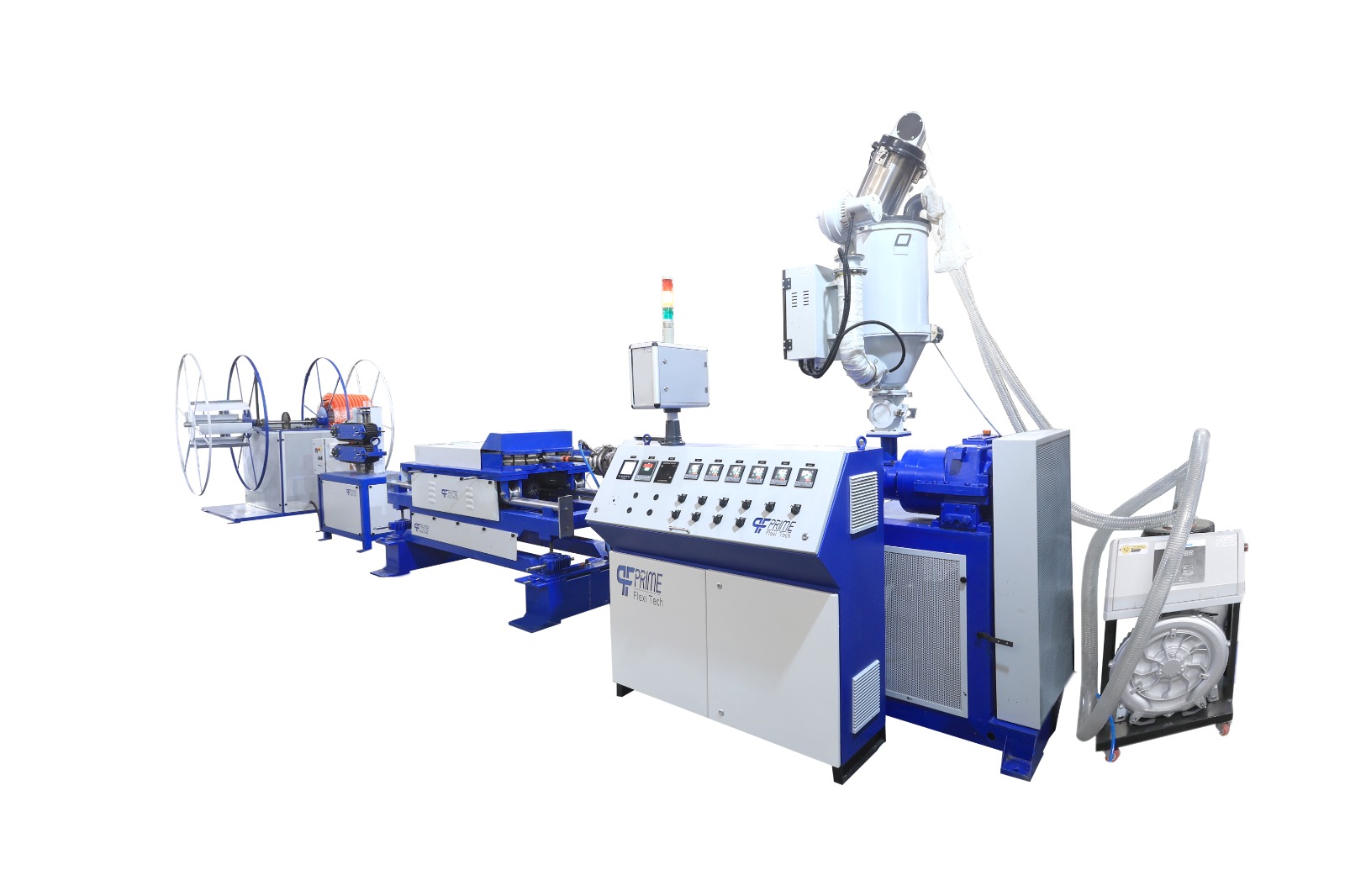

We offers wide range of products which include DWC Corrugated Pipe Machine. The Double wall corrugated pipe extrusion line by Prime flexi tech is provided with the vast range of size and configurations. The high-end Corrugated pipe Machines India are provided with economic range and fabricated with deftly designed components. It is equipped with the high performance electric motor and gearbox, which are used to give the extrusion process continuity and efficiency.
It is fabricated with considering the high productivity of Corrugator Machine to facilitate investors achieve maximum return with low investment. We believe in providing the qualitative range of machinery, hence, we invest in time and resources
| Model | MIN. I. D.(mm) | MAX O.D. (mm) | Chian Length(mm) | No. Of Mould | Process Material | Supply Drive |
|---|---|---|---|---|---|---|
| PF-63/92 | 30 | 63 | 6062 | 92 | HD.P.P. | 3.5 KW |
| PF-75/92 | 38 | 75 | 6062 | 92 | HD.P.P. | 5.0 KW |
| PF-120/54 | 38 | 120 | 6102 | 54 | HD.P.P. | 5.5 KW |
| PF-180/60 | 65 | 180 | 6000 | 60 | HD.P.P. | 7.5 KW |
| PF-200/56 | 90 | 200 | 6320 | 56 | HD.P.P. | 7.5 KW |
| PF-314/45 | 110 | 315 | 6210 | 45 | HD.P.P. | 5.2 KW |
